The DAP CA-4150 is a 4x 150 watt amplifier with configurable built-in Crossover. Equipped with Class D technology and SMPS, the CA-4150 has all the necessary functionalities for today's user.

This 4-channel model has terminal inputs and outputs with the option to switch between stereo and bridge mode. In addition, the gain is adjustable per channel.

When a channel signal is causing distortion, a LED signal is indicating you to decrease the source signal level. It is not only protected from clipping, but also from overloading and overheating due to soft start technology. The CA-4150 can be built into a 19-inch rack case and has a 1 unit height.

Configurable built-in crossover for top-sub combination

Class D amp, SMPT and Soft Start technology

Advanced protection circuits & indicator LEDs

Stereo and bridge mode

1U suitable for 19" rack

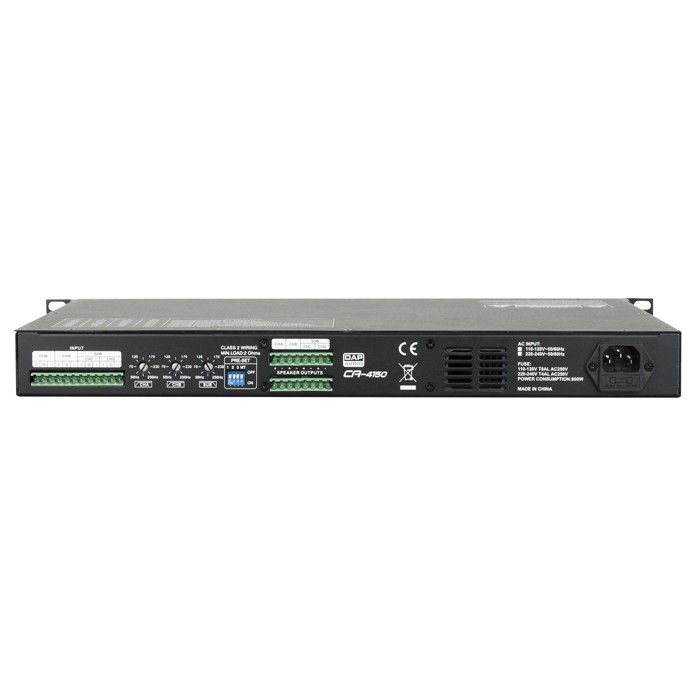

DAP CA-4150 4 Channel Digital Amplifier

€589.95

Quantity

Inputs

Mono Inputs  4

Mono Input Connector  Terminal

Mono Input Impedance  20 Ω

Mono Unbalanced Input Sensitivity 1 dBv

Outputs

2 Ohms Stable  Yes

Output per channel into 8 ohms at 1 kHz  90 W

Output per channel into 4 ohm at 1 kHz  150 W

Output per channel into 2 ohm at 1 kHz  230 W

Bridge Output into 8 ohms at 1 kHz  190 W

Bridge Output into 4 ohms at 1 kHz  275 W

Output per channel into 8 ohm at 20 Hz > 20 kHz  90 W

Output per channel into 4 ohm at 20 Hz > 20 kHz  150 W

Output per channel into 2 ohm at 20 Hz > 20 kHz  230 W

Bridge Output 8 ohm on 20 Hz > 20 kHz  190 W

Bridge Output 4 ohm on 20 Hz > 20 kHz  275 W

Output Channels  4

Output Gain  28 dB

Output Mode  4-channel, Bridge, Stereo

Output Connector  Terminal

Included Items

Included Cables  IEC cable

Included Accessories  Green terminal connector, User Manual
